In the rapid development of wireless communication and radar system, 175-210MHz high power circulator has become the technical focus in military, industrial and communication field by virtue of its excellent VHF band adaptability and high power carrying capacity. Its design combines the non-reciprocal characteristics of ferrite material and advanced heat dissipation structure, which solves the problems of signal reflection interference and thermal stability of traditional devices in low-frequency and high-power scenarios.

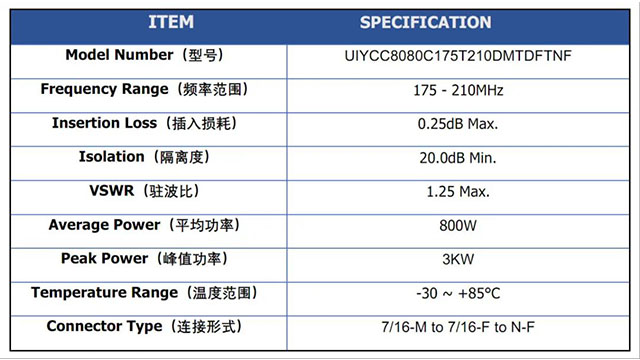

Recently, UIY has launched a new 800W high power circulator, the new 175-210MHz high power RF circulator is designed with ferrite magnetic circuit optimization and fully sealed coaxial structure to achieve reverse isolation enhancement and peak power carrying capacity, which has become a revolutionary tool for low-frequency and high-power scenarios. The specific parameters are as follows:

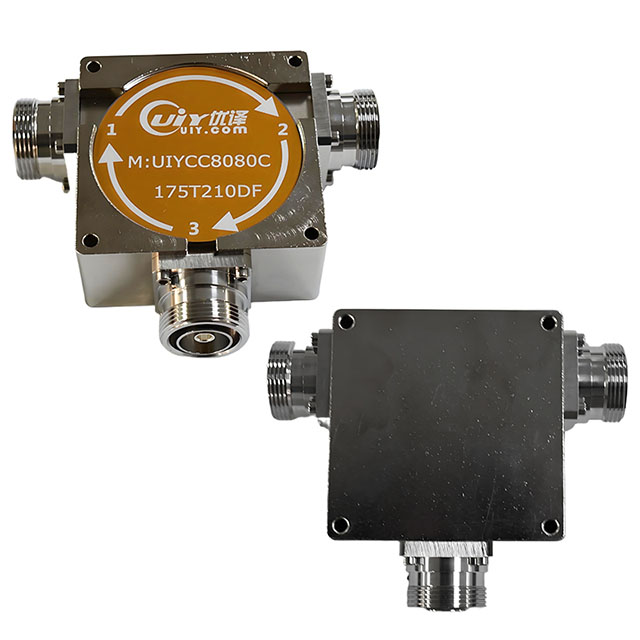

UIYCC8080C product physical picture:

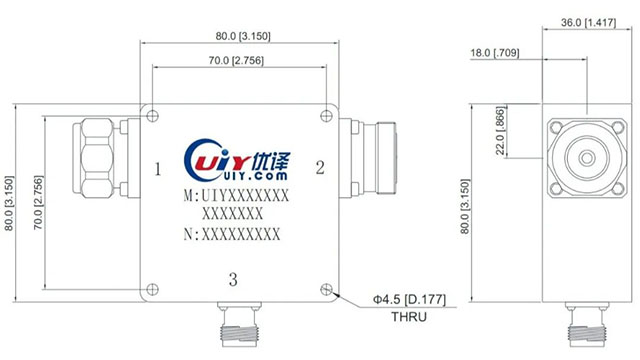

UIYCC8080C product external dimension:
Typical application scenarios for 175-210MHz high power circulators:
Military radar:
Isolate the transmit/receive signals to improve the anti-jamming ability and target recognition accuracy of early warning radar.
Satellite ground station:
Protect high power transmitter from reverse signal impact, reduce satellite link BER.
Electronic Countermeasures System:
Blocking enemy jamming signals, safeguarding the covert nature of their own communications.
Industrial testing equipment:
Provide stable signal isolation for medical gas pedals and substance analyzers, and extend the life of RF components.
Microwave multiplex communication and duplexer system:
Realize unidirectional conduction of signal in microwave multiplex communication to enhance system stability; combine with duplexer to build bidirectional link to optimize signal separation efficiency.
